made in France
unvb
Ultralight night vision binocular
Manufacturing
Our devices are designed and manufactured in France. Assembly, argon purging and quality control are carried out on our factory near Bordeaux.
Ruggedness
The mechanical structure of our binoculars makes them highly resistant to stress, while keeping their weight to a minimum (from 454 grams).
ULTRALIGHT BINOCULAR
L’UNVB est un binoculaire de vision nocturne léger, fiable et résistant. D’une masse de 580 grammes (optiques Milspec), il fait partie des binoculaires de vision nocturne les plus légers de sa catégorie.
Its design ensures reliability even in the most demanding environments.
Built-in infrared illuminator
The UNVB has a built-in infrared illuminator. With a wavelength of 850nm, this illuminator is compatible with most image intensifier tubes on the market, ensuring perfect vision in all situations.
MODULAR POWER SUPPLY
L’UNVB est alimenté par une pile AA, assurant jusqu’à 25 heures d’autonomie.
Sa conception permet l’utilisation de batteries rechargeables type 14500.
L’UNVB dispose également d’un connecteur pour une alimentation externe optionnelle, permettant une augmentation significative de l’autonomie pour des missions de longue durée.
Auto Shut-Off
Inter-pupillary distance adjustment
The UNVB includes an inter-pupillary distance adjustment function.
The user can set the distance between the axes of the two oculars.
Mounting interface
The UNVB is equipped with a mounting interface (dovetail) compatible with accessories using WilcoX-type dovetails.
IMAGE INTENSIFIER TUBES
The UNVB is offered with an extensive range of image intensifier tubes. These tubes are available in white or green phosphor.
disponibles en phosphore blanc ou vert.
RayXagon works with Photonis, Elbit or North Night Vision Technology (NNVT) brand tubes.

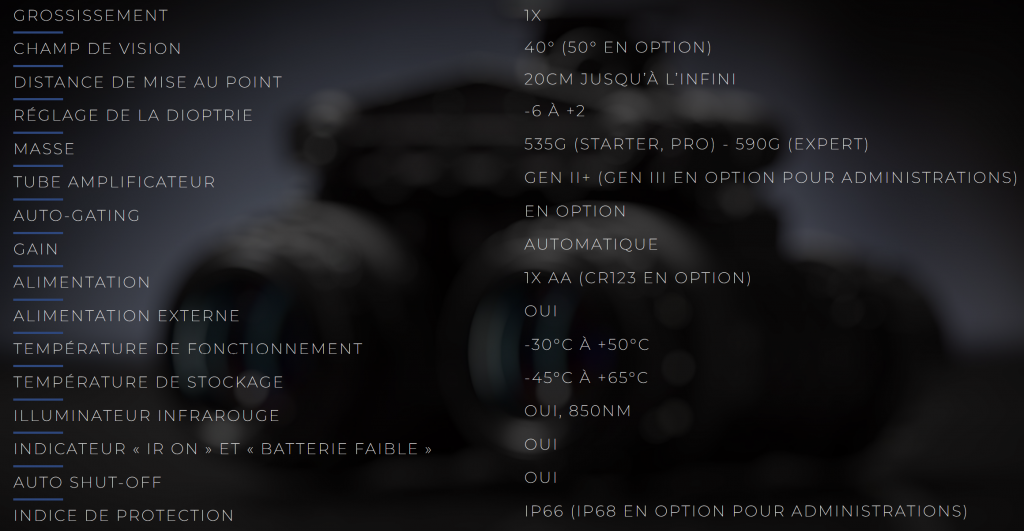

specifications
Magnification
Field of view
Focus range
Diopter adjustment
Weight
Image intensifier
Auto-Gating
Brightness gain
alimentation
External power supply
Operating temperature
Storage temperature
Illuminateur infrarouge
“IR-ON” and “Low battery” indicator
Auto shut-off
Protection index
1x
40° (50° optional)
20 cm to infinity
-6 to +3
480 g (Optiques RPO) - 580g (Optiques Milspec)
Gen II+ or Gen III
optional
automatic
1x AA battery (CR123 optionnal)
optional
-35°C to +50°C
-45°C to +65°C
yes, 850nm
yes
yes
IP66 OU IP68
